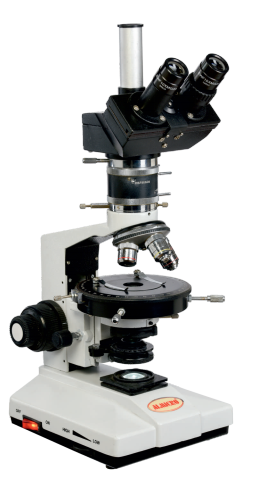

TRINOCULAR MICROSCOPE PM-12
This microscope is a high-precision trinocular polarization system built for advanced research and laboratory analysis. It offers HC infinity optics, long-life LED illumination, a centrable nosepiece, rotating stage, and a smooth three-step focusing drive for sharp, accurate imaging and documentation.
PM-12 Trinocular Microscope – Specification Table
| Category | Specifications |
|---|---|
| Microscope Stand | Research stand for polarization; transmitted light LED illumination; dovetail for interchangeable stages; adjustable height stop; adjustable focusing torque; stabilized power supply 90–250V, 50/60Hz |
| Illumination | LED lamp housing with constant color temperature; long-life LED (100,000 hours) |
| Nosepiece | Quintuple centrable revolving nosepiece; all positions centrable |
| Focusing System | Three-step focus drive: coarse / medium / fine |
| Optical System | Infinity Corrected and Harmonic Compensated (HC) |
| Filter Magazine | Built-in transmitted light filter magazine; includes Daylight Filter DLF (40 mm) and Grey Filter N16 (6.3%, 40 mm) |
| Analyzer | 180° rotatable analyzer for transmitted light |
| Compensators | Lambda plate and quarter-wave plate for transmitted light |
| Stage | Rotating, interchangeable stage with clamp; anodized surface; 178 mm diameter; dual verniers (0.1°); boreholes for accessories; centerable condenser holder with L/R leveling; adjustable Z-stop; object guide stage included |
| Viewing Head | Trinocular Pol phototube; fixed photo port; 30° viewing angle; interpupillary distance 55–75 mm; constant focus; automatic right eyepiece/graticule adjustment; 50/50 beam splitter (fixed) |
| Condenser | Universal condenser for brightfield & polarization; switchable condenser head; color-coded aperture diaphragm |
| Polarizer | 360° rotatable / swing-out polarizer for transmitted light |
| Eyepieces | Pair of 10x/22 eyepieces (one with reticule); extra pair of 10x/22 supplied; focusable & adjustable |
| Objectives | POL-engraved high-resolution objectives: 5x/0.12, 10x/0.25, 20x/0.40, 40x/0.65, 100x/1.25 oil; polarization-suitable |
| Camera Adapter | C-mount adapter 0.55x HC |
| Warranty | 1-year from installation |
Features:
1. Ergonomic design for prolonged use with low operator fatigue; anti-vibration rubber feet for stability.
2. Dust-proof and maintenance-free optical path to ensure long-term performance without frequent servicing.
3. In-built USB 3.0 connectivity for fast data transfer from camera to computer.
4. Pre-calibrated software with auto white balance, auto exposure, and image stitching functions.
5. Capability for live image display on large screen/projector for teaching or group discussions.
6. Built-in safety features to protect LED from overcurrent and overheating.
7. Energy-efficient design with power consumption less than 30W.
8. Shock-proof and scratch-resistant stage coating for durability.
9. All optics anti-fungal treated for tropical climate conditions.
10. Supplied with dust cover, immersion oil, cleaning kit, and instruction manual.
