INDUSTRIAL MICROSCOPES
Showing all 7 resultsSorted by latest
-
Polarizing Microscopes
Trinocular Polarizing Microscope
With triple revolving nose piece, circular stage, rotatable in 360 degree, graduated with vernier reading upto 0.1 degree with provision for centering by two knobs located just below the circular stage, polarizing with swing out system. Compact analyser head having iris diaphragm, Bertand lens. Analyser rotating ring and half/full wave compensator with following optical combination.
SKU: n/a -
Inverted Metallurgical

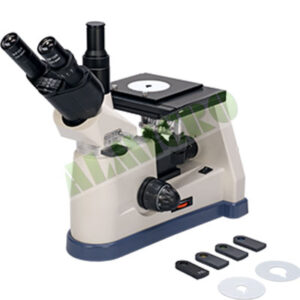

Inverted Trinocular Metallurgical Microscope
The Inverted Trinocular Metallurgical Microscope is a premium research-grade instrument designed for metallurgical, material science, and industrial laboratory applications. Featuring a compensation-free trinocular head inclined at 45°, it provides ergonomic observation for long-duration work. The microscope is built with a double-layer mechanical stage (172mm × 142mm) with 30mm × 30mm movement range, and a coaxial coarse and fine focusing system with rack & pinion mechanism, offering precise adjustments with a fine scale value of 0.002mm.
SKU: n/a -
-
Polarizing Microscopes
PM-12(ALMICRO ORE POLARISING/METALLURGICAL MICROSCOPE)
- Trinocular head replacable with Monocular, and Binocular head.
- Bertrand lens, Sliding Analyzer 1/2 & 1/4 wave compensator.
- Rotatable stage divided into 0-360° with vernier.
- Adjustable Condensor N.A. 1.25.
- Polarizer duly graduated with in-out system.
- Built in light arrangement with 6V20W halogen lamp.
- Solid State light control arrangement.
- Paired eye piece 5x(cross), 10x(occular), 15x (optional).
- Objectives P5x, P10x, P40x/45x
SKU: PM-12(ALMICRO ORE POLARISING/METALLURGICAL MICROSCOPE) -
-
Upright Metallurgical
MM-3 (ALMICRO BINOCULAR METALLURGICAL MICROSCOPE)
Fitted with Binocular head assembled from hard coated prisms. Bright field horizontal illuminator with centring provision, Quadruple revolving nose piece, straight tube for photomicrography, special graduated mechanical stage, supplied with variable light control transformer and following optics in box.
SKU: MM-3 (ALMICRO BINOCULAR METALLURGICAL MICROSCOPE)
