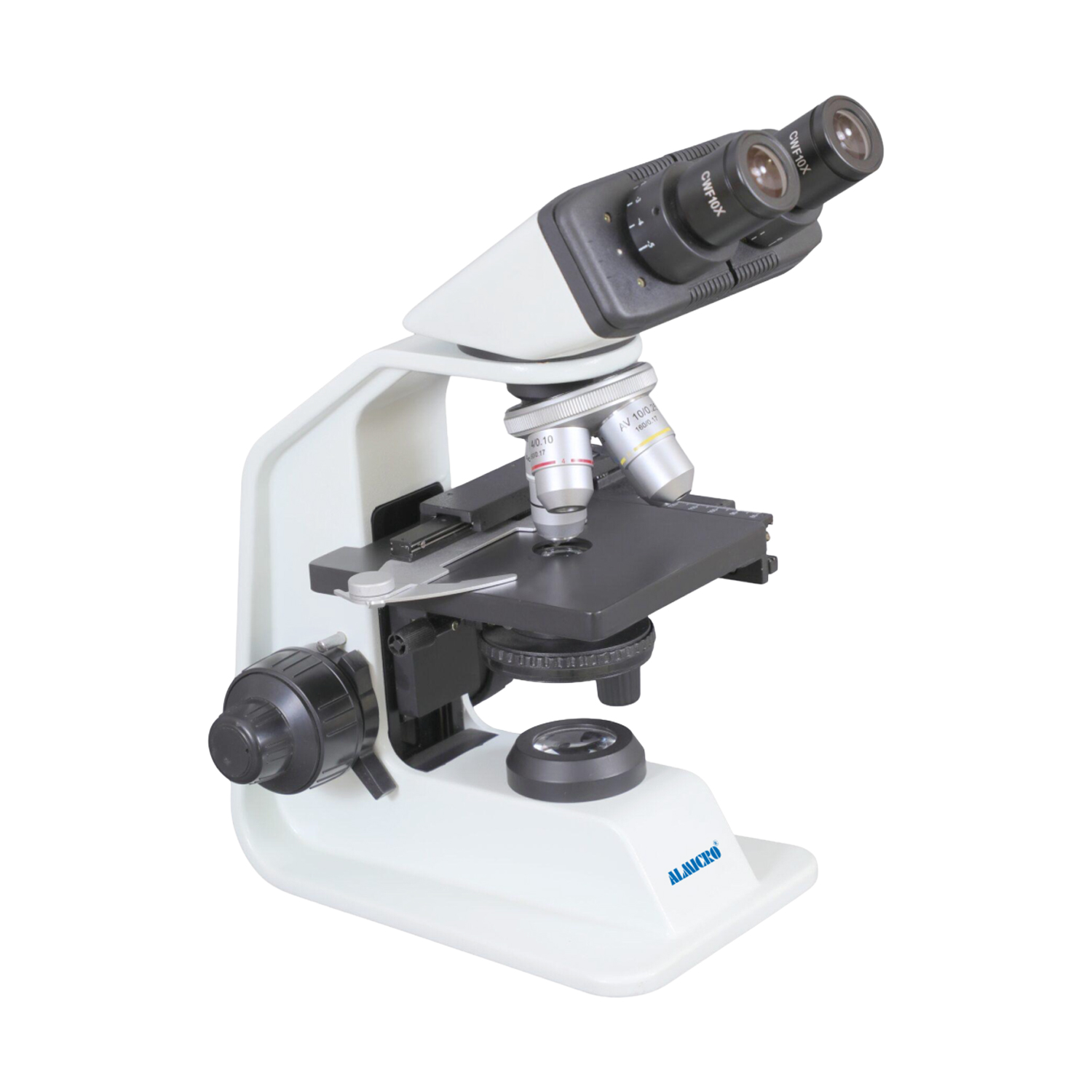

BM-8bi (Single Mould) New
Built with a single-mold sturdy inclined binocular body, this bright-field microscope offers a 30° rotatable head, precision dioptric adjustment, wide-angle eyepieces, plan achromatic objectives, smooth coaxial focusing, ceramic mechanical stage, Abbe condenser, antifungal optics, long-life LED illumination with battery backup, and wide-range voltage protection for reliable daily laboratory performance use.
Body: Single mold sturdy stand inclined Binocular body
Head: Binocular Head 30° inclined rotable at 360°, without adjusting screws with interpupillary distance of 50-75mm.
Viewing Angle: 30°
Observation mode: BRIGHT FIELD
Dioptric adjustment: Yes, on left tube ±5
Eye Piece: Paired high quality 10X/20mm wide angle anti fungus
Nosepiece: Quadruple
Objectives: Plan Achromatic, 4x, 10x, 40x SL Oil immersion &100x SL Oil immersion
Antifungal coated infinity and color corrected. Well centered even if their position on turret is changed.
Specimen Stage: Ceramic Coated Rectangular mechanical stage (within main body),
with specimen holder and vernier calibrations, cross travel: 120 (X) x 125 (Y) mm
Focussing: Coaxial coarse/fine focusing (located on both sides), cross roller guide,
Focusing stroke: Up 2 mm/Down 13 mm, coarse: 37.7 mm per rotation, fine: 0.2 mm per rotation, minimum reading: 2 µm
With coarse focus knob torque adjustment ring and stage vertical movement stopper
Condenser: Abbe Condenser, NA 1.25, vertically movable and centerable
Fungus-proof treatment: Antifungal paint is applied around optical system
Illumination: 3W LED Light (> 10,000 Hrs lifespan) with on/off switch, light intensity regulator with rechargeable battery system (>1hr backup)
Power Supply: Input: 100-240 VAC, 50-60 Hz
Protection: Inbuilt protective safety device which can withstand fluctuations of voltage from 140 V-280V
