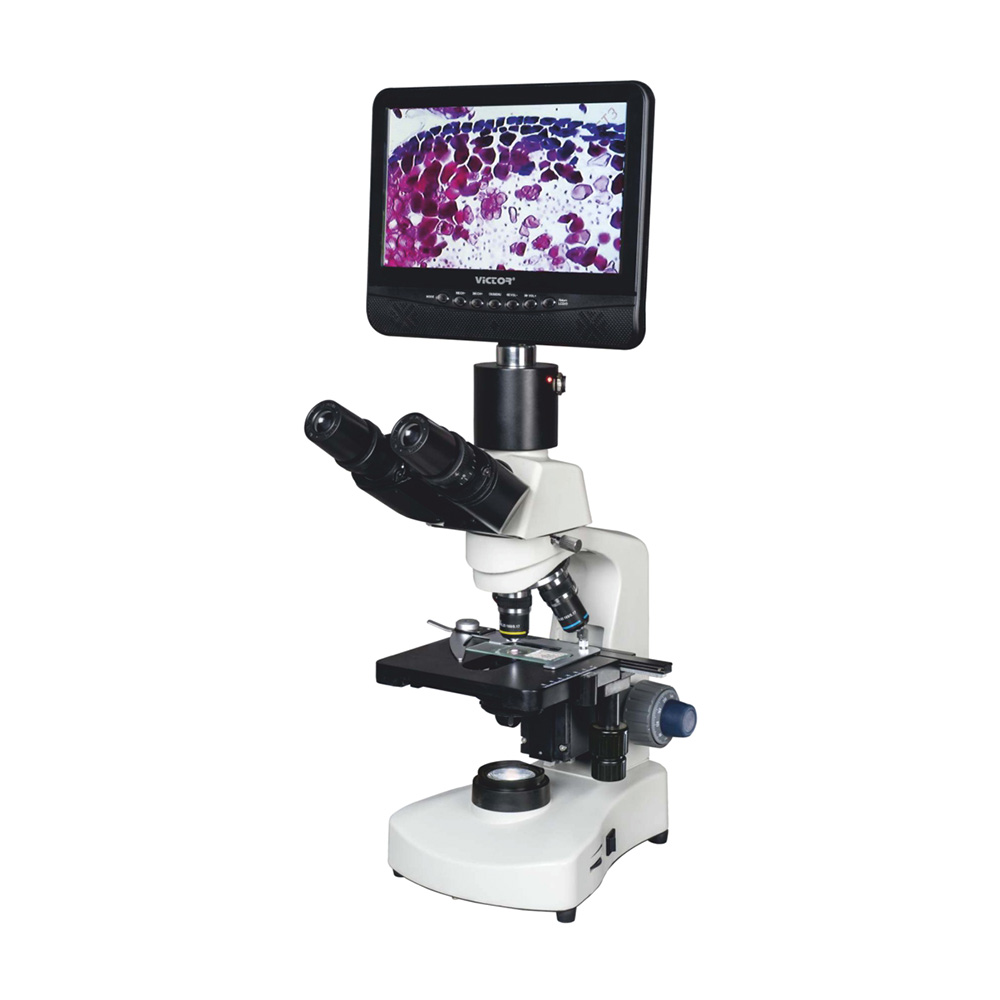

Digital Video Microscope DVM-01 Plus
Introduced latest Binocular with built in C.C.D.Camera can be linked to video monitor or computer combining video displays with Microscope is an exciting new technology.The Video Microscopy provides excellent results class-room teaching, demonstration & group discussions in conferences & seminars.
Built-in CCD Camera Features image device 1/3″ colour CCD Camera Censer. Resolution 380TV Lines (720×576 pixels).
Technical Features high degree performance & resolution is achieved through multilayer anti reflection coating in prism. Heavy duty quardple reveling nosepiece having ball bearing Co-axial coarse and fine motion knobs on both sides based on 4 stage gear resolution systems traveling on ball guides, a large stage fitted with Co-axial mechanical stage. Built in halogen base 6V-20W halogen light source. Nicely packed in wooden box with parafocalised & precentred optics.
Eye Piece Extra large WF 10x H5x (paired)
Objectives 5x, 10x, 45x (SL), 100 x (SL)
Note: Instead of built in CCD camera in built USB type eyepiece camera can be provided with image capturing software.
| TUBE LENGTH | 160mm |
| VIEWING HEAD | Compensation free Binocular Head inclined at 30°, Interpupillary Distance : 55-75 mm |
| EYEPIECE (OCULAR) | Line field of view : 18mm |
| NOSEPIECE | Backward Quadruple Nosepiece |
| OBJECTIVE | Semi Plan Achromatic : 4X, 10X, 40X, 100X |
| FOCUS SYSTEM | Co-axial Coarse and Fine Focusing System, Sensitivity and Graduation of Fine Focus : 0.004mm, Range : 24mm |
| CONDENSOR | Abbe N.A. 1.2 |
| STAGE | Double Layer Mechanical Stage, Area : 132X142mm, Movement Range : 75X40mm |
| LAMP HOUSE | Halogen Lamp 6V,20W or LED Lamp 3W |
