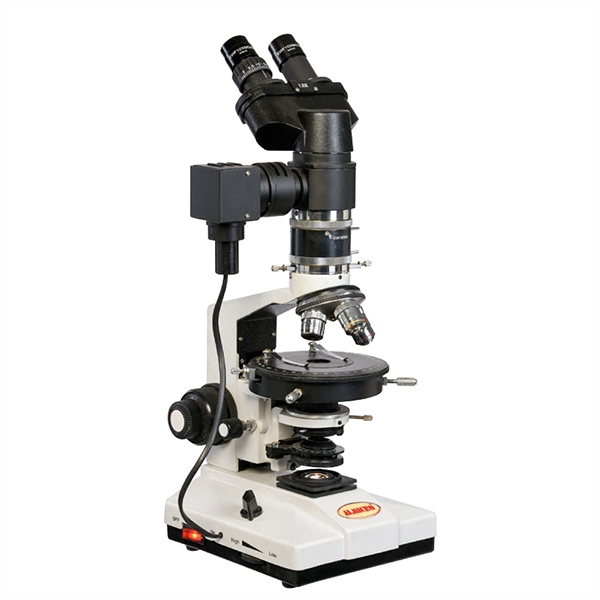

Ore Binocular Microscope (OR – 01)
The Ore Binocular Microscope (OR-01) is a specialized polarizing microscope designed for detailed ore and mineral analysis. It features both incident and transmitted illumination, allowing clear observation of opaque as well as transparent mineral samples. The binocular head can be replaced with a monocular or trinocular head, making it adaptable for teaching, research, and photomicrography.
Equipped with a Bertrand lens, sliding analyzer, and ½ & ¼ wave compensators, it supports advanced optical studies. The 0–360° rotatable stage with vernier ensures precise specimen orientation, while the N.A. 1.25 adjustable condenser provides controlled illumination.
A built-in 6V/20W halogen lamp with solid-state intensity control offers stable, bright lighting. The OR-01 comes with paired eyepieces (5x cross, 10x, and optional 15x) and objectives (P5x, P10x, P40x/45x), delivering sharp, high-contrast images essential for accurate ore identification and petrographic research.
Both Incident & Transmitted lights are provided for ore Microscopy
Binocular head replacable with Monocular, and Trinocular head.
Bertrand lens, Sliding Analyzer 1/2 & 1/4 wave compensator.
Rotatable stage divided into 0-360° with vernier.
Adjustable Condensor N.A. 1.25.
Polarizer duly graduated with in-out system.
Built in light arrangement with 6V20W halogen lamp.
Solid State light control arrangement.
Paired eye piece 5x(cross), 10x(occular), 15x (optional).
Objectives P5x, P10x, P40x/45x
Based on 0 reviews
Related products
-
Microscopes, Ultra Series Microscope

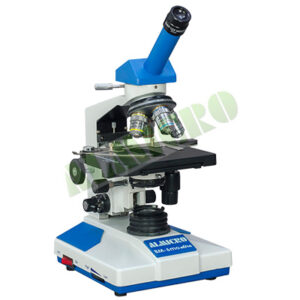

BM-6mo (ALMICRO RESEARCH INCLINED MONOCULAR MICROSCOPE)
