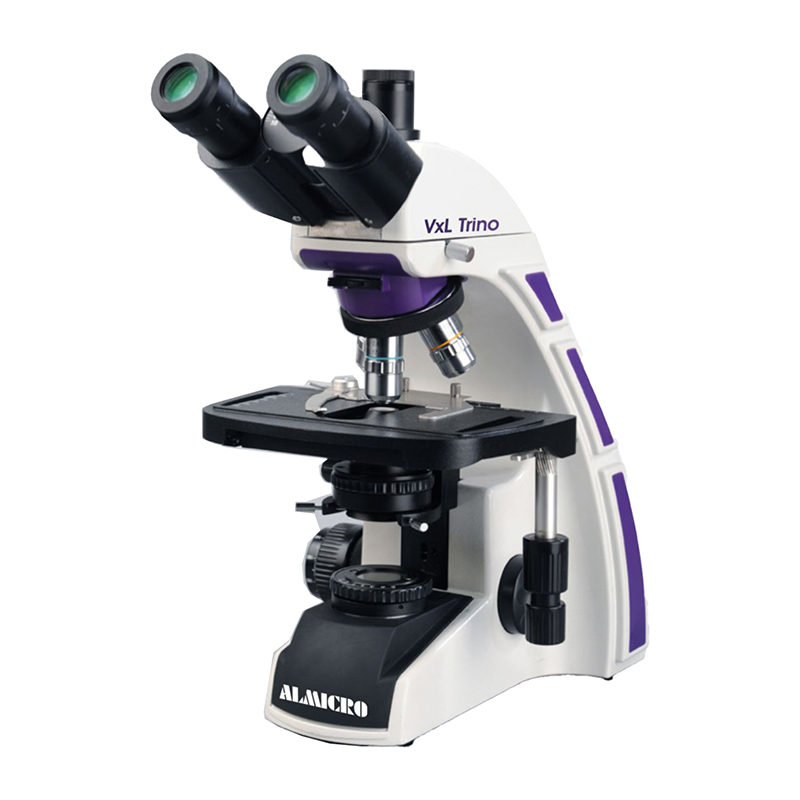

VxL Trino
The excellent appearance in accord with ergonomic design Integrated body design makes products maintains long-term stability High quality 3W LED lamp and long usage life
Optical System: Finite Optical System
Eyepiece: PL10X/23mm High Eyepiont Eyepiece, Diopter Adjustment ±5
Objective: 45mm DIN Achromatic Objective 4X,10X,40X(S),100X(S,Oil)
Viewing Head: Articulated Free Binocular Head, 30°inclined, Interpupillary Distance 50-75mm
Nosepiece: Backward Quintuple or Quadruple Objective Nosepiece
Stage: 220X148mm X-axis Low Hand Position Double Mechanical Stage(steel wire transmission) , 76X50mm,Precision 0.1mm , Double Slide Clamp
Condenser: Height Adjustable Abbe Condenser Set
Focussing System: Coaxial Coarse and Fine Focus Knobs, Precision 0.002mm
Illumination: 3W LED Lamp with Kohler Illumination System
Optional
1.Insert Phase Contrast Apparatus
2.Dry Darkfield Condenser, Oil-darkfield Condenser
3.Polarizing Device
4.PIan Objective Set, Infinity Plan Achromatic Objective Set
