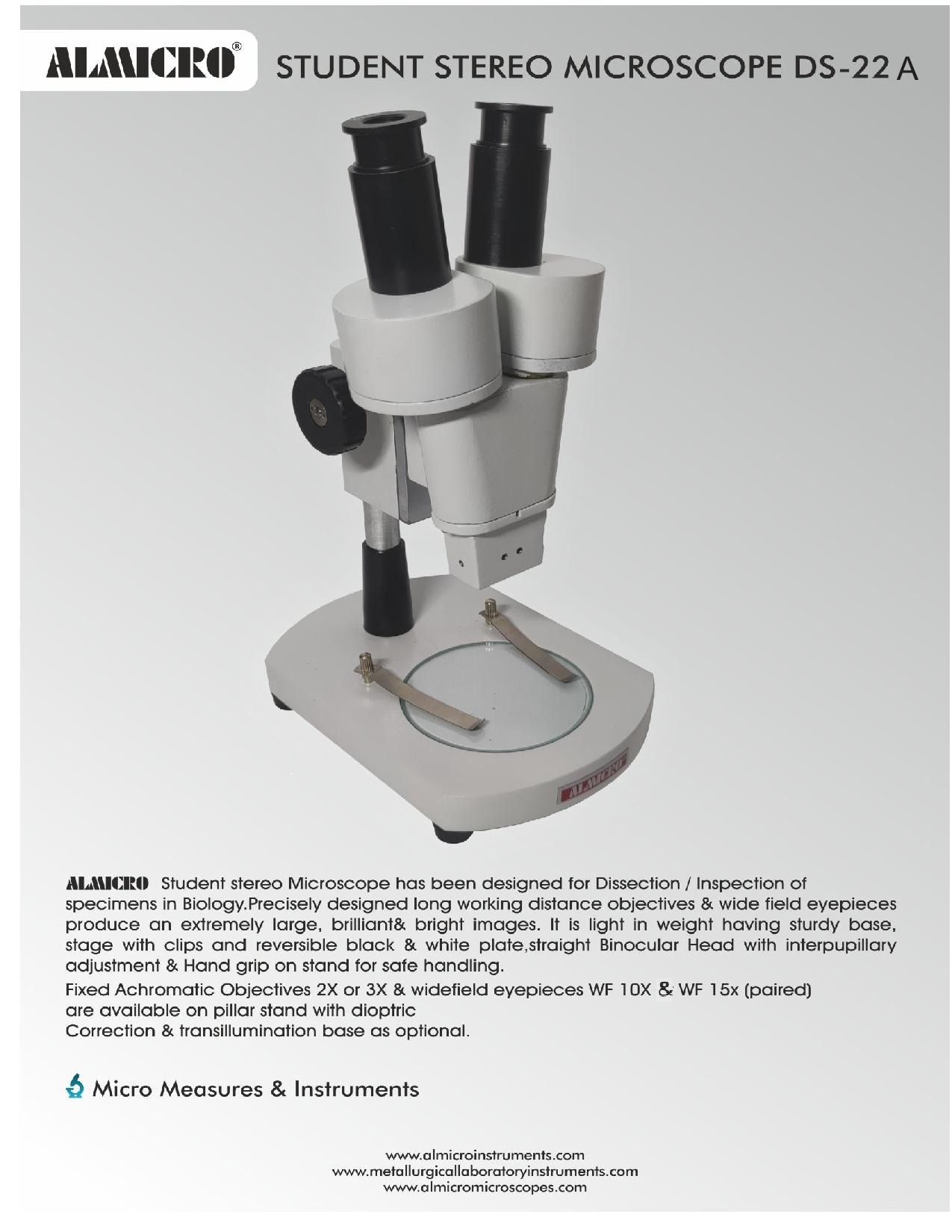

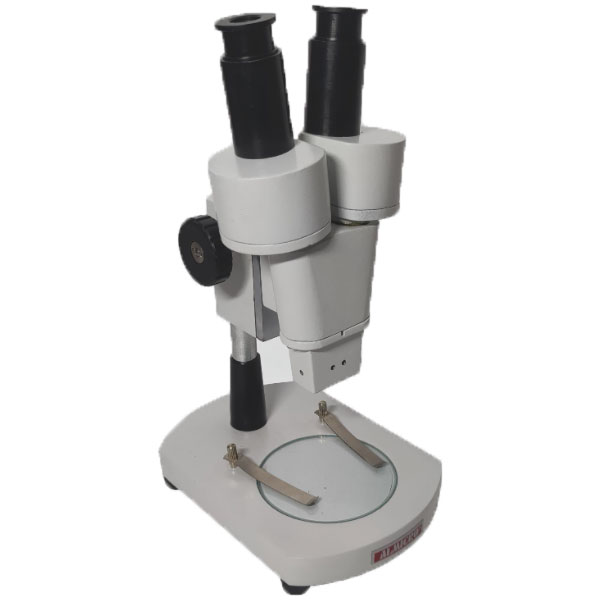

Stereo Straight Binocular Microscope (DS-22A)
The Student Stereo Microscope DS-22 is specially developed for educational and routine laboratory applications where three-dimensional observation is required. This microscope provides clear, bright, and depth-rich images, making it ideal for specimen dissection, inspection, and surface examination. Its ergonomic body design, stable construction, and long working distance optics ensure comfortable and reliable performance during extended use.
Technical Specifications – DS-22 Stereo Microscope
| Specification | Details |
|---|---|
| Model | DS-22 |
| Microscope Type | Student Stereo Microscope |
| Observation Head | Straight binocular head |
| Body Design | Integrated ergonomic body |
| Magnification System | Fixed objectives with interchangeable eyepieces |
| Eyepieces | WF 10X or WF 15X (paired), wide field |
| Working Distance | Long working distance objectives |
| Illumination | High-quality 3W LED lamp |
| Light Life | Long-lasting LED with low power consumption |
| Base | Heavy, sturdy base for stable operation |
| Stage Plate | Reversible black & white contrast plate |
| Stage Clips | Provided for secure specimen holding |
| Interpupillary Adjustment | Available |
| Dioptric Adjustment | Provided |
| Optional Accessories | Transmitted illumination base |
| Packaging | Inner thermocol / styrofoam with outer cardboard box |
Key Features of Student Stereo Microscope DS-22
-
Designed specially for students and teaching laboratories
-
Stereo (3D) viewing for better depth perception
-
Ergonomic and integrated body design for long-term stability
-
3W LED illumination delivers bright and uniform light
-
Long working distance allows easy specimen handling
-
Wide-field eyepieces produce large and sharp images
-
Lightweight construction with strong and stable base
-
Reversible black & white stage plate for contrast enhancement
-
Smooth binocular head with interpupillary adjustment
-
Optional transmitted illumination for flexible usage
-
Safe and convenient handling with hand grip on stand
Working Principle of Stereo Microscope
The Student Stereo Microscope operates by using two separate optical paths—one for each eye—to produce a three-dimensional image of the specimen. Light from the LED source illuminates the object, and the reflected light passes through the objective lenses. The binocular optical system then delivers slightly different viewing angles to each eye, creating depth perception. This makes the microscope ideal for observing surface details, dissections, and larger specimens without complex sample preparation.
Applications & Use Areas
-
Biology laboratories for specimen dissection
-
Educational institutes for practical teaching
-
Inspection of electronic and mechanical components
-
Quality control labs for surface examination
-
Research and training laboratories
-
Routine observation of insects, plants, and materials
Why Choose Almicro DS-22 Stereo Microscope?
-
Trusted Almicro brand – since 1978
-
Designed with student comfort and safety in mind
-
Reliable optical performance with minimal maintenance
-
Cost-effective solution for educational institutions
-
Supplied with secure and damage-free packaging
