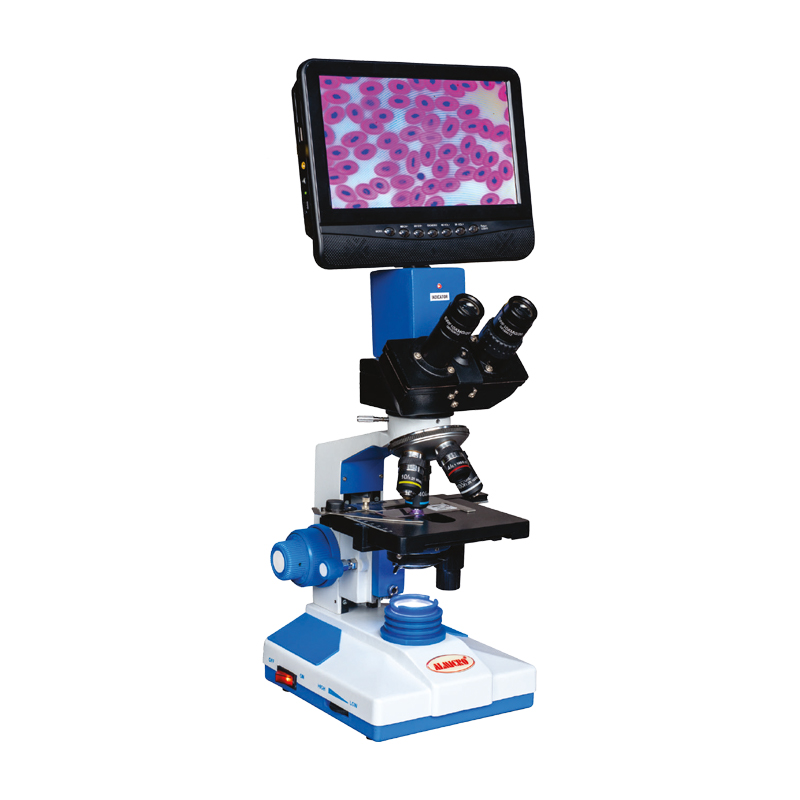

Digital Video Microscope DVM-01
The Digital Video Microscope DVM-01 is a high-performance laboratory microscope with a built-in 1/3″ color CCD camera, delivering 380 TV lines (720×576 px) resolution. It features a multilayer anti-reflection coated prism, quadruple nosepiece, coaxial coarse/fine focus (0.004 mm), and a double-layer mechanical stage for precise scanning. Equipped with WF10x/H5x eyepieces, Semi-Plan Achromatic objectives, and 6V-20W halogen or 3W LED illumination, it ensures sharp imaging, ergonomic use, and durable performance, ideal for teaching, research, and industrial inspection.
Built-in CCD Camera Features image device 1/3″ colour CCD Camera Censer. Resolution 380TV Lines (720×576 pixels).
Technical Features high degree performance & resolution is achieved through multilayer anti reflection coating in prism. Heavy duty quardple reveling nosepiece having ball bearing Co-axial coarse and fine motion knobs on both sides based on 4 stage gear resolution systems traveling on ball guides, a large stage fitted with Co-axial mechanical stage. Built in halogen base 6V-20W halogen light source. Nicely packed in wooden box with parafocalised & precentred optics.
Eye Piece Extra large WF 10x H5x (paired)
Objectives 5x, 10x, 45x (SL), 100 x (SL)
Note: Instead of built in CCD camera in built USB type eyepiece camera can be provided with image capturing software.
| TUBE LENGTH | 160mm |
| VIEWING HEAD | Compensation free Binocular Head inclined at 30°, Interpupillary Distance : 55-75 mm |
| EYEPIECE (OCULAR) | Line field of view : 18mm |
| NOSEPIECE | Backward Quadruple Nosepiece |
| OBJECTIVE | Semi Plan Achromatic : 4X, 10X, 40X, 100X |
| FOCUS SYSTEM | Co-axial Coarse and Fine Focusing System, Sensitivity and Graduation of Fine Focus : 0.004mm, Range : 24mm |
| CONDENSOR | Abbe N.A. 1.2 |
| STAGE | Double Layer Mechanical Stage, Area : 132X142mm, Movement Range : 75X40mm |
| LAMP HOUSE | Halogen Lamp 6V,20W or LED Lamp 3W |
