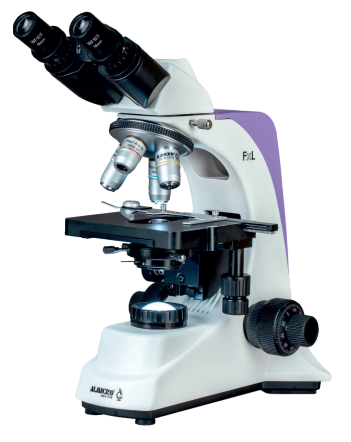

FXL Bino with Phase Contrast Microscope
The FXL Bino with Phase Contrast Microscope is a high-performance binocular microscope designed for advanced laboratory, clinical, and research applications. It is equipped with a robust upright stand, integrated LED illumination, and a complete phase contrast observation system for enhanced visibility of transparent and low-contrast specimens
Technical Specification Table – FXL Bino with Phase Contrast Microscope
| Specification | Details |
|---|---|
| Microscope Stand | Upright stand with LED illumination and Phase Contrast observation system |
| Observation Tube | Binocular phototube, 25° inclined |
| Interpupillary Distance | Adjustable from 48 mm to 75 mm |
| Focusing System | Coaxial coarse and fine focusing knobs on both sides |
| Power Unit | Integrated power supply with high & low voltage protection |
| Auto Light-Off | Automatic illumination switch-off during non-usage |
| Illumination System | High-intensity, uniform LED illumination |
| Light Intensity Control | Adjustable illumination intensity |
| Nosepiece | Quintuple revolving nosepiece with anti-collision mechanism |
| Objectives | Plan Achromat 4x, 10x, 20x, 40x, 100x (Oil Immersion) |
| Phase Contrast Compatibility | 10x, 20x, 40x & 100x objectives |
| Eyepieces | Wide-field 10x & 20x, FOV > 20 mm |
| Diopter Adjustment | ±5 diopter with rubber eyecups |
| Mechanical Stage | Precision mechanical stage, hard-coated anodized, non-corrosive |
| Stage Movement | Smooth XY movement with right-hand control knobs |
| Slide Holder | Adjustable-width locking slide/specimen holder |
| Stage Ruler | Integrated measurement ruler on stage edge |
| Vibration Control | Vibration-free design for stable observation |
| Measurement Tools | Supplied with ocular micrometer & stage micrometer |
| Accessories | Standard accessories, cables, lenses & dust cover |
| Warranty | 3 Years Comprehensive Warranty |
| Maintenance | AMC & CMC available for 3 additional years (excluding taxes) |
Key Features
-
Upright microscope stand with integrated LED illumination and Phase Contrast observation system
-
Binocular phototube with 25° inclination for ergonomic viewing comfort
-
Adjustable interpupillary distance from 48 mm to 75 mm
-
Coaxial coarse and fine focusing knobs on both sides for precise focus control
-
Quintuple revolving nosepiece with anti-collision mechanism for objective safety
-
Plan Achromat objectives (4x, 10x, 20x, 40x, 100x oil immersion)
-
Phase Contrast compatible objectives: 10x, 20x, 40x, and 100x
-
High-intensity, uniform LED illumination for consistent brightness
-
Adjustable light intensity control as per observation requirement
-
Precision mechanical stage made of hard-coated, non-corrosive anodized material
-
Smooth XY stage movement with right-hand control knobs
-
Adjustable-width locking slide/specimen holder
-
Integrated stage ruler for accurate slide positioning
-
Wide-field 10x and 20x eyepieces with FOV > 20 mm
-
±5 diopter adjustment with rubber eyecups for user comfort
-
Vibration-free design for stable and sharp image observation
-
Supplied with ocular micrometer and stage micrometer for measurements
-
Integrated power supply with high and low voltage protection
-
Auto light-off feature to save energy and extend LED life
-
Supplied with standard accessories including cables, lenses, and dust cover
-
3 Years Comprehensive Warranty with AMC & CMC options available
Working Principle
-
LED light source illuminates the specimen uniformly
-
Phase contrast system converts phase differences into visible contrast
-
Light passes through condenser and phase-compatible Plan Achromat objectives
-
Objectives magnify transparent and unstained specimens with enhanced clarity
-
Binocular eyepieces further enlarge the image for comfortable observation
-
Coarse focusing enables rapid initial focus adjustment
-
Fine focusing allows precise sharpening of specimen details
-
Mechanical stage provides smooth XY movement for accurate slide scanning
-
Adjustable illumination intensity and vibration-free design ensure clear and stable images
Use Cases / Applications
-
Medical and pathology laboratories for phase contrast studies
-
Research laboratories for live cell and microorganism observation
-
University and college laboratories for advanced teaching and demonstrations
-
Clinical laboratories for detailed diagnostic sample analysis
-
Training centers for professional microscopy education
-
Pharmaceutical and biotechnology laboratories
-
Industrial and quality control laboratories for precise inspection work
